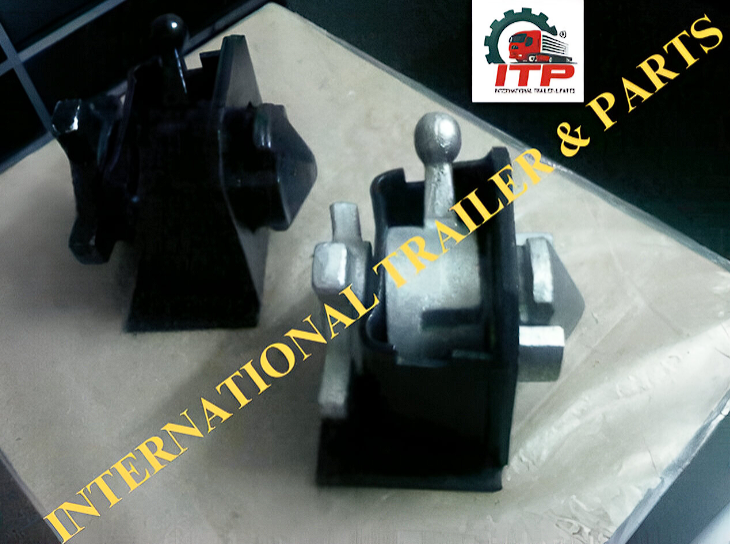

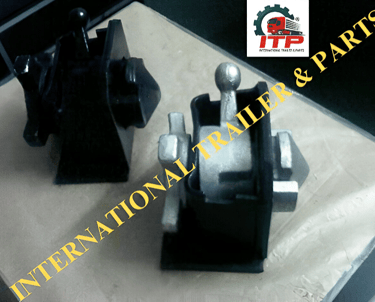

R 416 VAK / R 316 VA TWIST LOCK

Our container Twist Lock R416 VAK / R316 VA (905.248.000 / 905.198.000) respectively are BV approved and ISO standardized.

We play very important role in process of producing these container twist locks. A stringent, standardized quality procedure is followed from the very first step of sheet cutting, sheet bending, welding, casting, forging, machining & surface treatment.

After manufacturing process these container twistlocks are sent for quality control and QC checks to meet the preferred quality standards. After inspection these are sent to customers as per their requirements.

TECHNICAL APPLICATIONS

Twist Lock Weight: 10.5 KG

Locking Pin: ø38MM

Application: Container Trailer

Gross Weight: 25,400 KG

Interchanges With: 905.248.000

Twistlock Type: Retractable, Can be screwed down.

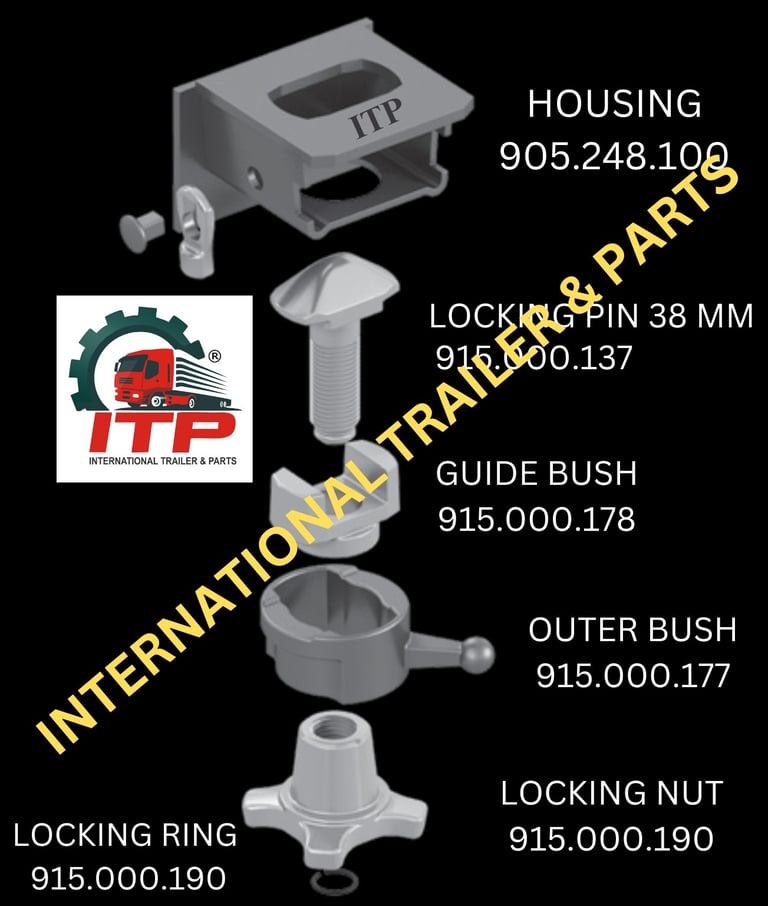

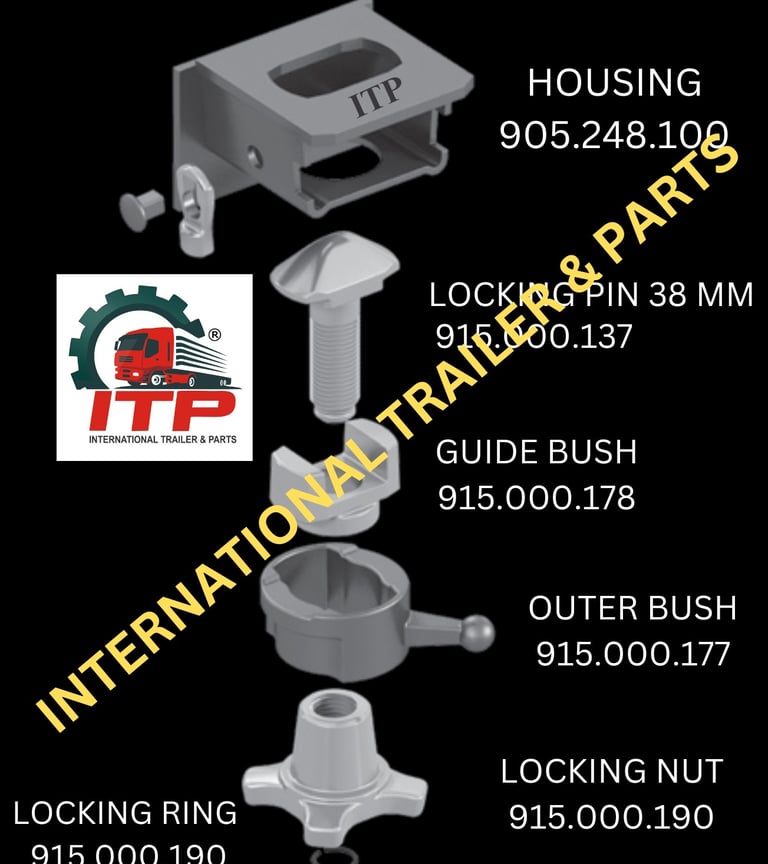

TWIST LOCK INNER PARTS DETAIL

1) Housing Welded: 905.248.100

2) Locking Pin: 915.000.137

3) Guide Bush: 915.000.178

4) Outer Bush: 915.000.177

5) Locking Nut: 915.000.127

6) Locking Ring: 915.000.190

For 905.248.000 / 905.198.000

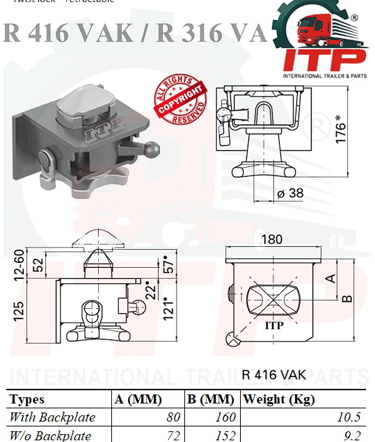

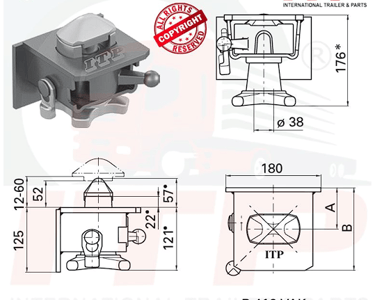

ASSEMBLY DIMENSIONS

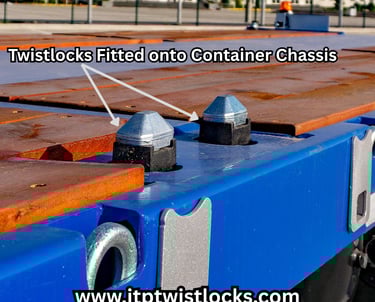

Twistlocks are to weld onto container chassis in center positions & corner of swap bodies and intermodal trailer chassis.

Gross container weight: 25,400KG

Dimensions are in position ready for mounting.

TWISTLOCK INNER PARTS

LOCKING PIN 38X4X155MM

Twist lock locking pin made from En-Forged steel

Interchanges with twistlock models - R 416 VAK, R 316 VAP, R 436 VAK, VA 36 SK, R 1018, SR 514 FQ, SR 516 VAQ.

Locking Pin thread limited by a locking ring.

INNER GUIDE BUSH

Twist lock guide bush made from En-Forged steel / Cast steel.

Interchanges with twistlock models - R 416 VAK, R 316 VAP, R 436 VAK, VA 36 SK, R 1018, SR 514 FQ, SR 516 VAQ.

Inner guide bushes Zinc plated or Galvanized

LOCKING NUT 38X4 (38MM)

Twist lock locking nut made from En-Forged steel / Cast steel.

Interchanges with twistlock models - R 416 VAK, R 316 VAP, R 436 VAK, VA 36 SK, R 1018, SR 514 FQ, SR 516 VAQ.

Locking nut Zinc plated or Galvanized
