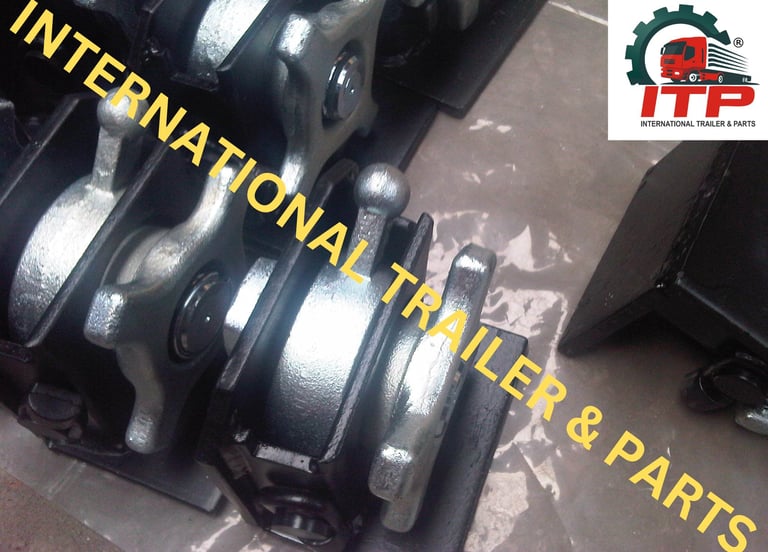

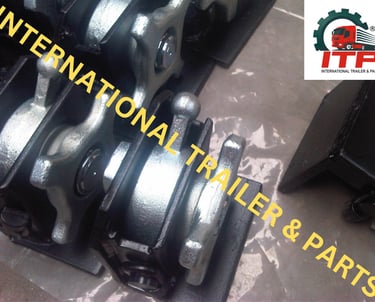

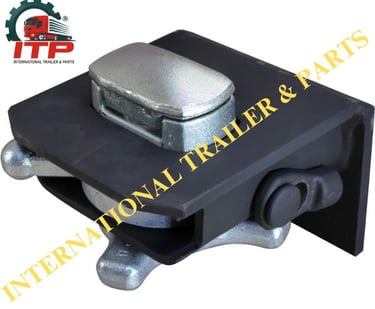

R 405 VAK / R 406 VAKV TWIST LOCK

Our container Twist Lock R405 VAK / R406 VAKV (905.319.000 / 905.317.000) respectively are BV approved and ISO standardized.

We play very important role in process of producing these container twist locks. A stringent, standardized quality procedure is followed from the very first step of sheet cutting, sheet bending, welding, casting, forging, machining & surface treatment.

After manufacturing process these container twistlocks are sent for quality control and QC checks to meet the preferred quality standards. After inspection these are sent to customers as per their requirements.

TECHNICAL APPLICATIONS

Twist Lock Weight: 12.2 KG

Locking Pin: ø52MM / ø38MM

Application: Intermodal vehicle / trailer

Gross Weight: 24,400KG

Interchanges With: 905.319.000

Twistlock Type: Retractable, Can be screwed down.

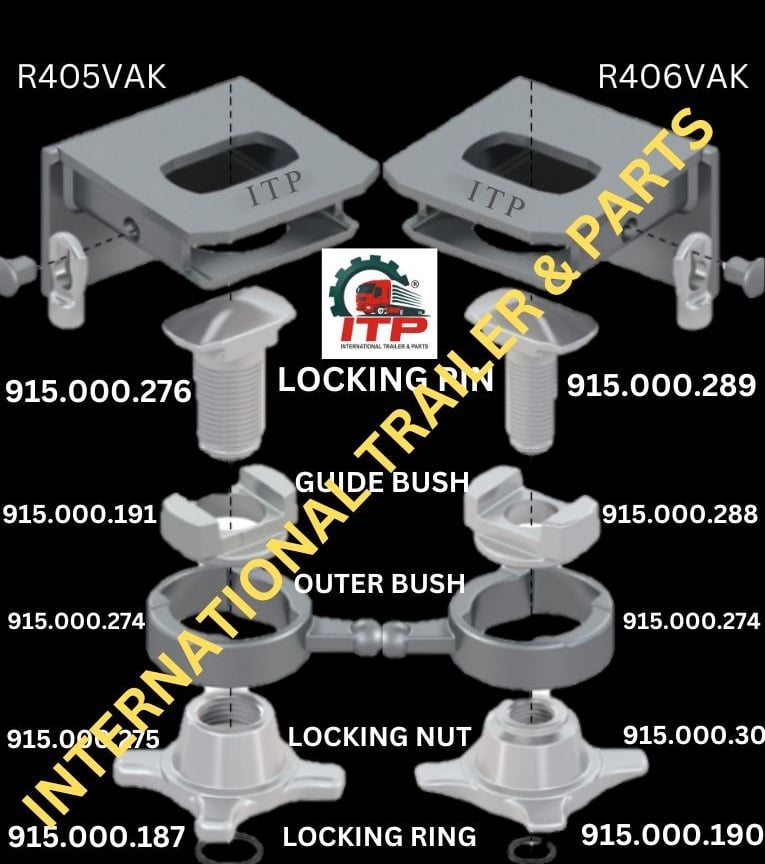

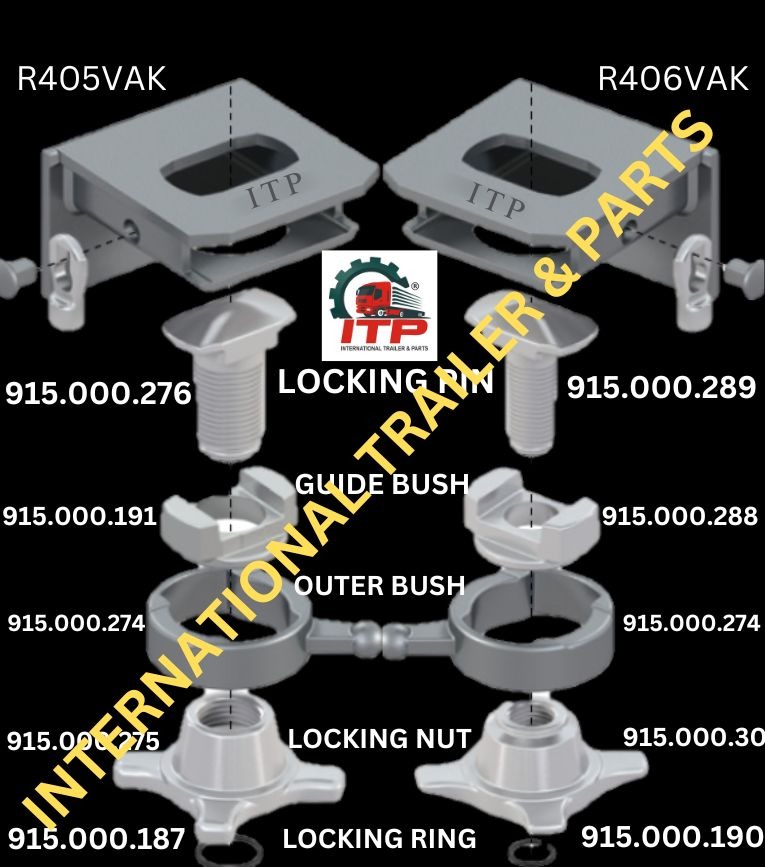

TWIST LOCK INNER PARTS DETAIL

1) Housing Welded: 905.319.100

2) Locking Pin: 915.000.276

3) Guide Bush: 915.000.191

4) Outer Bush: 915.000.274

5) Locking Nut: 915.000.275

6) Locking Ring: 915.000.187

For 905.319.000 (52MM)

For 905.317.000 (38MM)

1) Housing Welded: 905.319.100

2) Locking Pin: 915.000.289

3) Guide Bush: 915.000.288

4) Outer Bush: 915.000.274

5) Locking Nut: 915.000.303

6) Locking Ring: 915.000.190

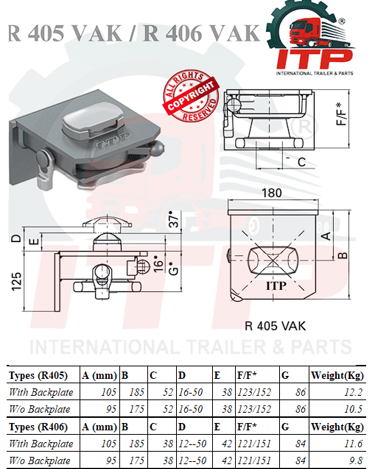

ASSEMBLY DIMENSIONS

Twistlocks are to weld onto container chassis in center positions & corner of swap bodies and intermodal trailer chassis.

Gross container weight: 24,400KG

Dimensions are in position ready for mounting.

TWISTLOCK INNER PARTS

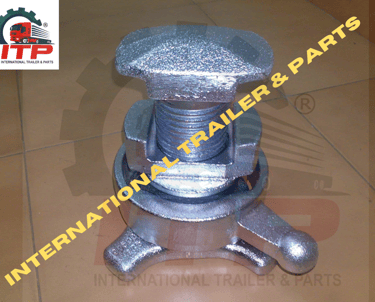

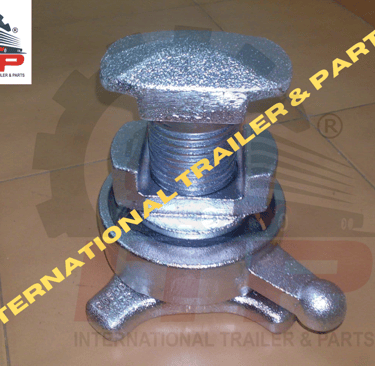

LOCKING PIN 52MM

Twist lock locking pin made from En-Forged steel

Interchanges with twistlock models - R 406 VAK / 306 VA / 406 VAK-C / 405 VAK / 305 VA

Locking Pin thread limited by a locking ring.

COMPLETE ASSEMBLY

Twist lock guide bush made from En-Forged steel / Cast steel.

Inner guide bushes Zinc plated or Galvanized

INNER ASSEMBLY

Twist lock locking nut & bushes made from En-Forged steel / Cast steel.

Locking nut & bushes Zinc plated or Galvanized

Interchanges with twistlock models - R 406 VAK / 306 VA / 406 VAK-C / 405 VAK / 305 VA

Interchanges with twistlock models - R 406 VAK / 306 VA / 406 VAK-C / 405 VAK / 305 VA
