R 401 VAK / R 301 VAV TWIST LOCK

Our container Twist Lock R401 VAK / R301 VAV (905.294.000 / 905.222.000) respectively are BV approved and ISO standardized.

We play very important role in process of producing these container twist locks. A stringent, standardized quality procedure is followed from the very first step of sheet cutting, sheet bending, welding, casting, forging, machining & surface treatment.

After manufacturing process these container twistlocks are sent for quality control and QC checks to meet the preferred quality standards. After inspection these are sent to customers as per their requirements.

TECHNICAL APPLICATIONS

Twist Lock Weight: 16.4 KG

Locking Pin: ø52MM

Application: Platform Trailer Chassis

Gross Weight: 30,000 KG

Interchanges With: 905.294.000

Twistlock Type: Retractable, Can be screwed down.

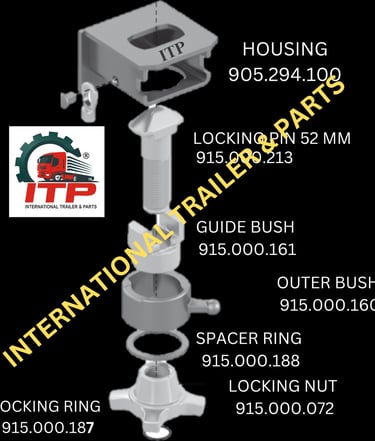

TWIST LOCK INNER PARTS DETAIL

1) Housing Welded: 905.394.100

2) Locking Pin: 915.000.213

3) Guide Bush: 915.000.161

4) Outer Bush: 915.000.160

5) Locking Nut: 915.000.072

6) Locking Ring: 915.000.187

For 905.294.000 / 905.222.000

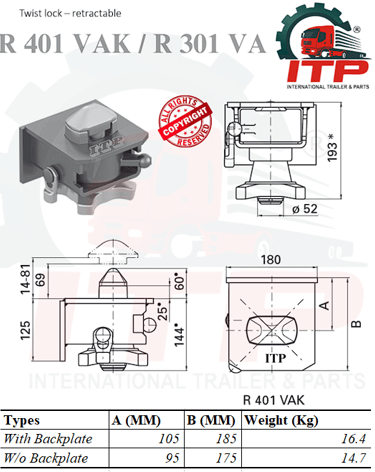

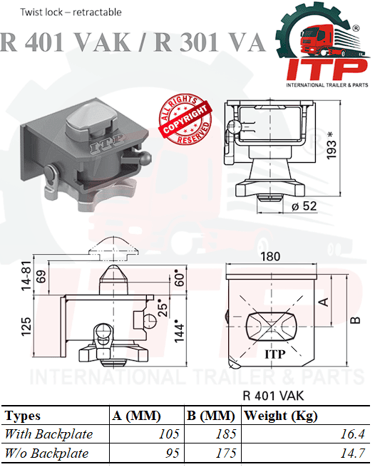

ASSEMBLY DIMENSIONS

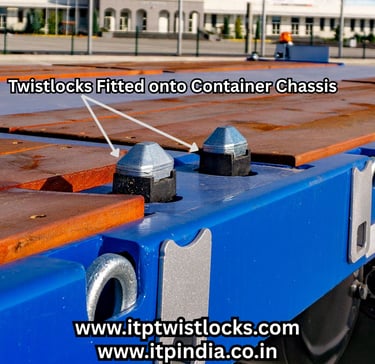

Twistlocks are to weld onto container chassis in center positions & corner of swap bodies and intermodal trailer chassis.

Gross container weight: 30,000KG

Dimensions are in position ready for mounting.

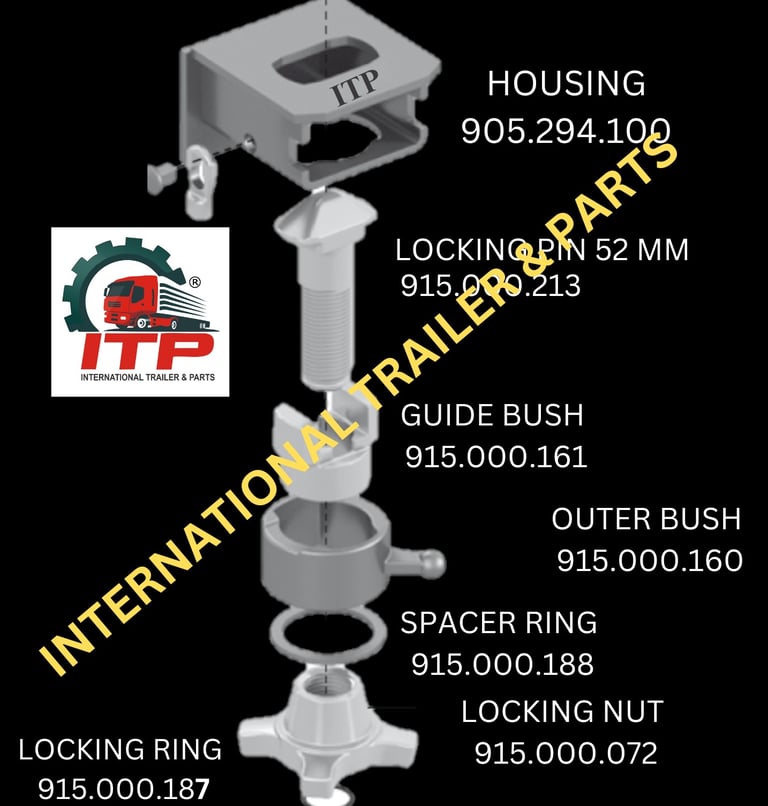

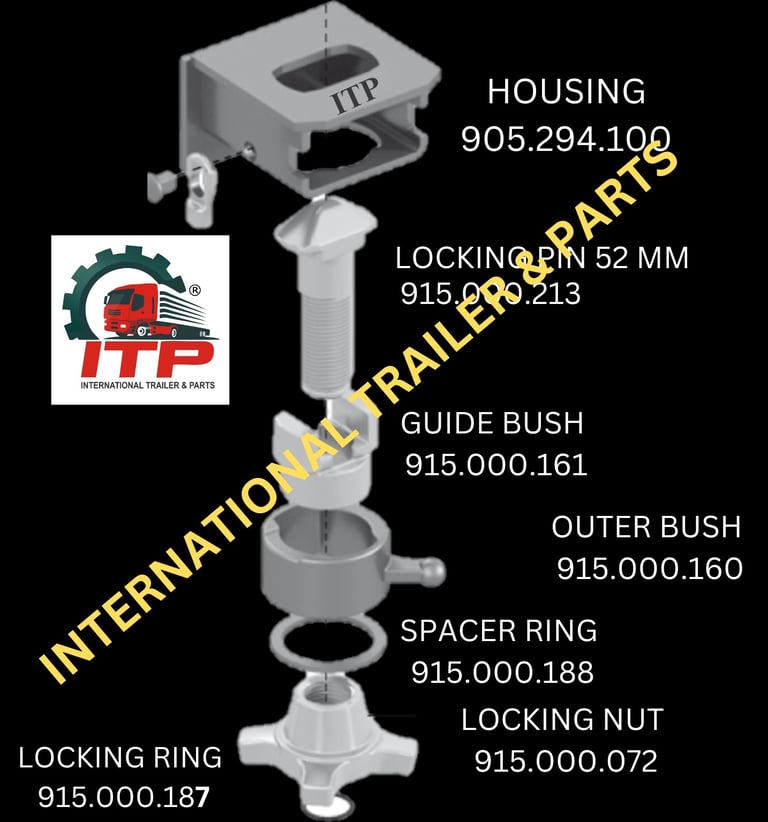

TWISTLOCK INNER PARTS

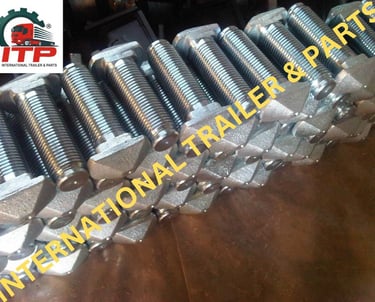

LOCKING PIN 52MM

Twist lock locking pin made from En-Forged steel

Interchanges with twistlock models - R 401 VAK, SR 502 FQ, SR 501 VAQ, QT 401 VAV, QT 402 FV.

Locking Pin thread limited by a locking ring.

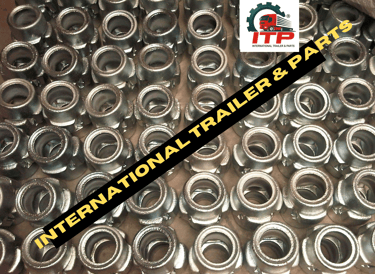

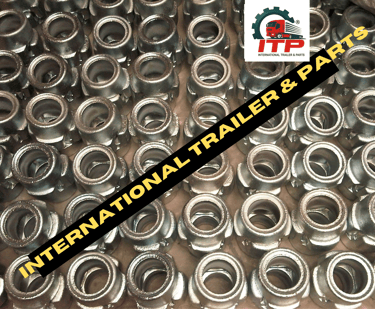

INNER GUIDE BUSH

Twist lock guide bush made from En-Forged steel / Cast steel.

Inner guide bushes Zinc plated or Galvanized

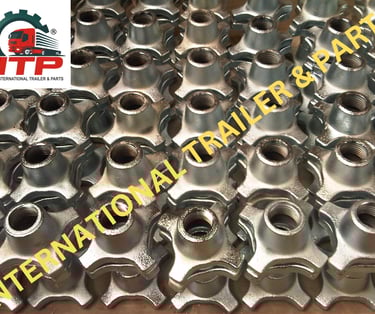

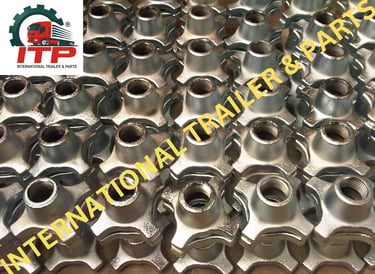

LOCKING NUT 52MM

Twist lock locking nut made from En-Forged steel / Cast steel.

Locking nut Zinc plated or Galvanized

Interchanges with twistlock models - R 401 VAK, SR 502 FQ, SR 501 VAQ, QT 401 VAV, QT 402 FV.

Interchanges with twistlock models - R 401 VAK, SR 502 FQ, SR 501 VAQ, QT 401 VAV, QT 402 FV.
