QA 37 NS / QA 38 NS TWIST LOCK

Our container Twist Lock QA 37 NS / QA 38 NS (905.667.000 / 905.675.000) straight handle & angled handle respectively are BV approved and ISO standardized.

We play very important role in process of producing these container twist locks. A stringent, standardized quality procedure is followed from the very first step of sheet cutting, sheet bending, welding, casting, forging, machining & surface treatment.

After manufacturing process these container twistlocks are sent for quality control and QC checks to meet the preferred quality standards. After inspection these are sent to customers as per their requirements.

TECHNICAL APPLICATIONS

Twist Lock Weight: 7.9-9.0 KG

Locking Pin: ø38MM

Application: Container chassis

Gross Weight: 25,400KG

Interchanges With: 905.667.000 / 905.675.000

Twistlock Type: Retractable, Cannot be screwed down.

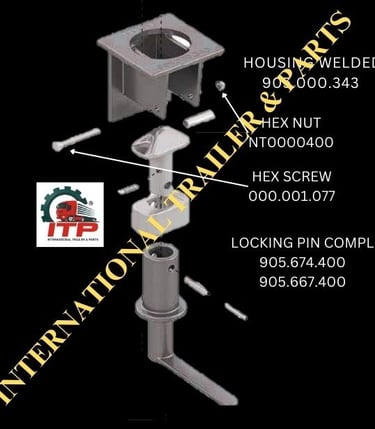

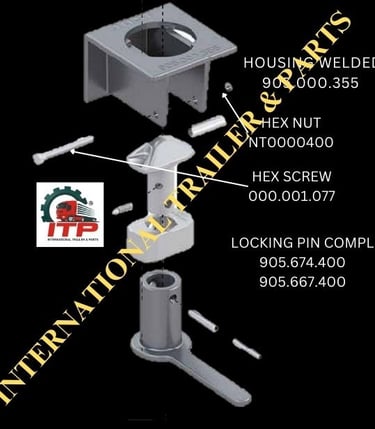

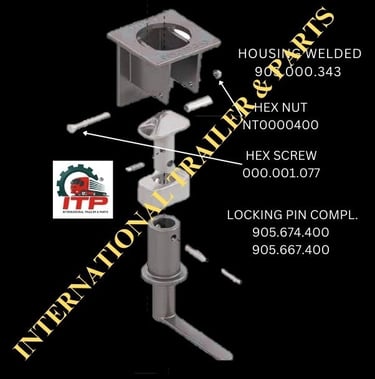

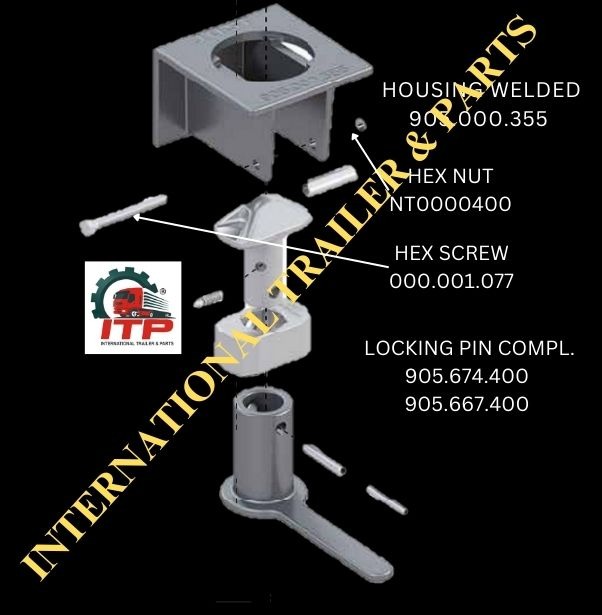

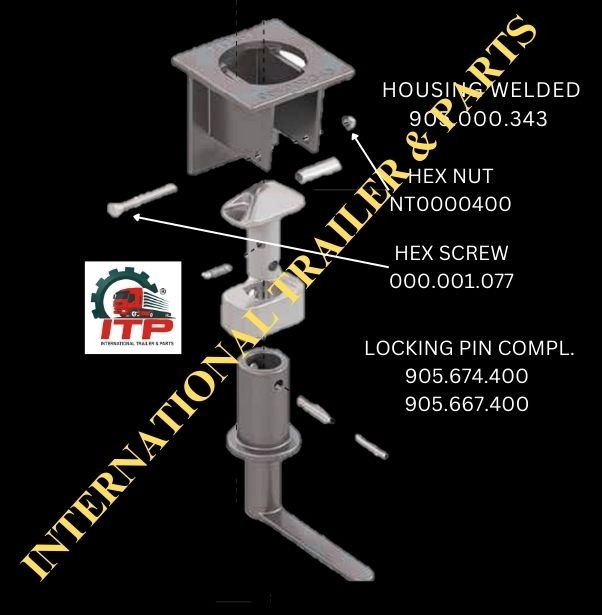

TWIST LOCK INNER PARTS DETAIL

1) Housing Welded: 905.000.343 / 905.000.355

2) Hex Nut: NT0000400

3) Hex Screw: 000.001.077

4) Locking Pin Complete: 915.000.274

For 905.667.000 / 905.675.000

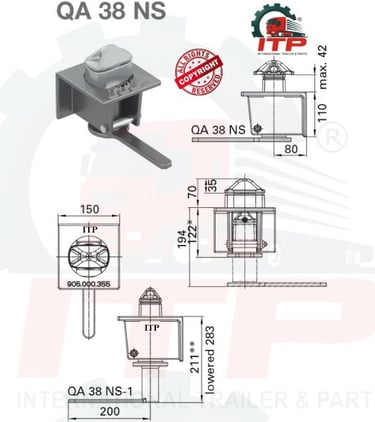

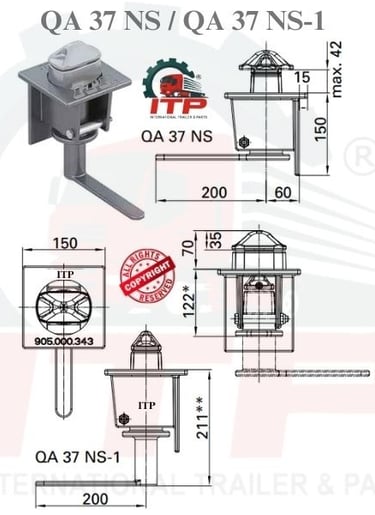

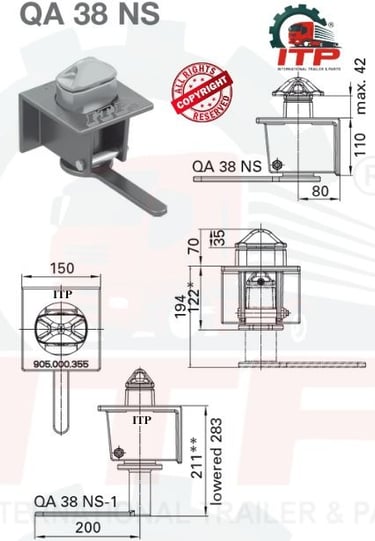

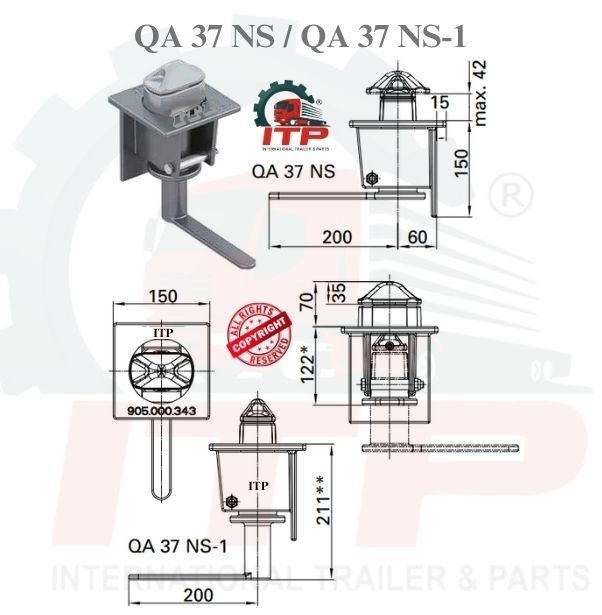

ASSEMBLY DIMENSIONS

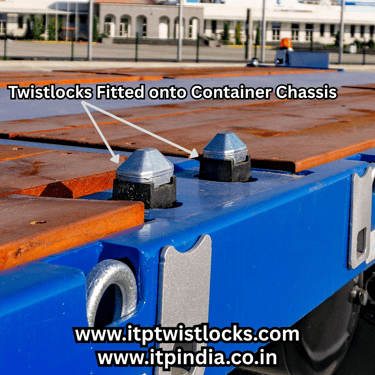

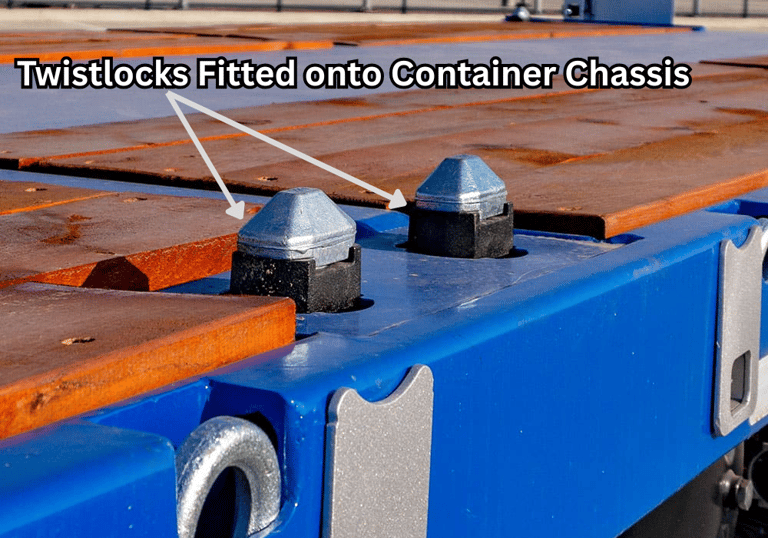

Twistlocks are to weld onto container chassis in center positions & corner of swap bodies and intermodal trailer chassis.

Gross container weight: 25,400KG

Dimensions are in position ready for mounting.

TWISTLOCK INNER PARTS

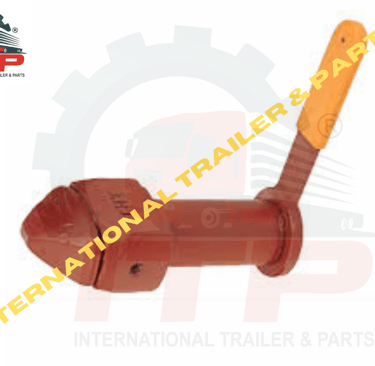

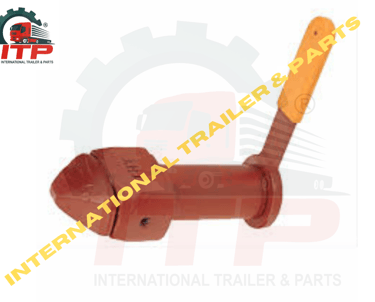

LOCKING PIN 38MM

Twist lock locking pin made from En-Forged steel

Interchanges with twistlock models - QA 37 NS / QA 37 NS-1 / QA 38 NS / QA 38 NS-1

With steel casted case on it

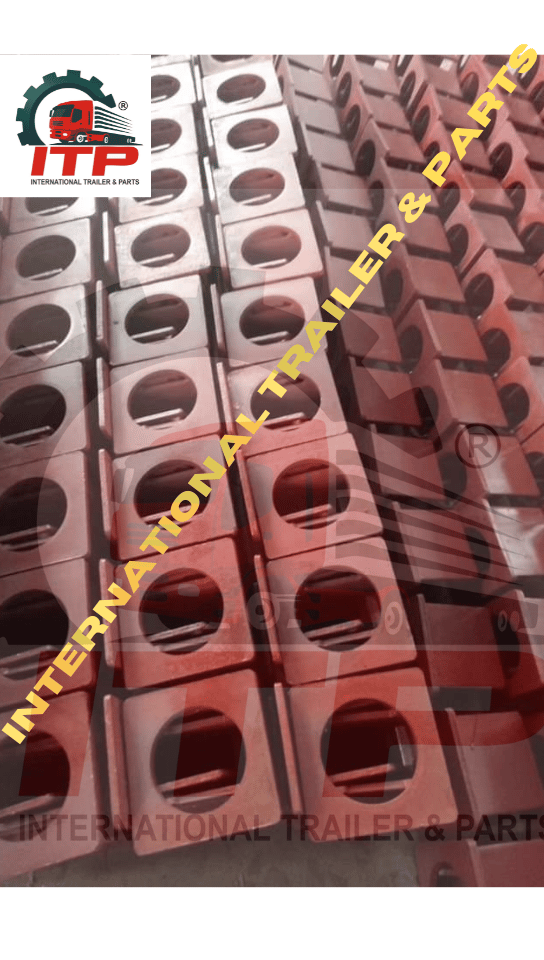

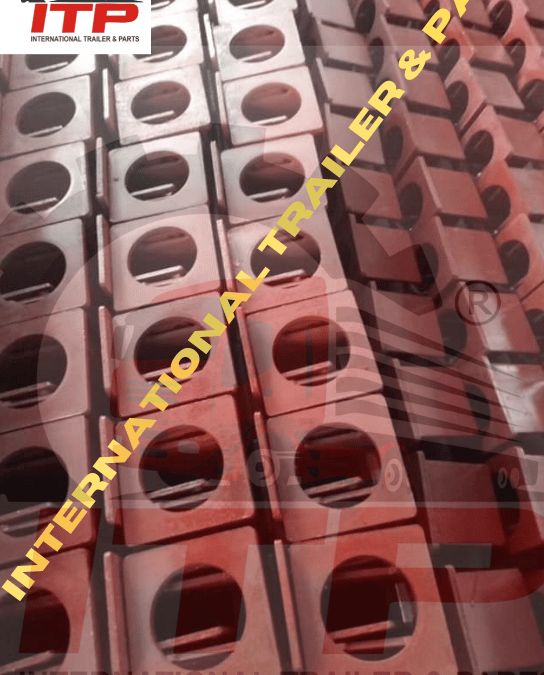

CONTAINER LOCK FRAME

Twist lock frame made of en-forged steel & steel sheets

INTERNAL BODY ASSY

Twist lock kit made of En-forged steel

Locking nut & bushes Zinc plated or Galvanized

Interchanges with twistlock models - QA 37 NS / QA 37 NS-1 / QA 38 NS / QA 38 NS-1

Interchanges with twistlock models - QA 37 NS / QA 37 NS-1 / QA 38 NS / QA 38 NS-1
